Kangxi Blue-and-White and the Five Shades of Cobalt

"Five shades" in Kangxi blue-and-white does not mean five pigments. It describes tonal handling: dark contours, paler washes and white porcelain arranged so that one cobalt blue can carry distance and volume. Chinese museum writing compares the effect with mo fen wu se, ink divided into five tones.

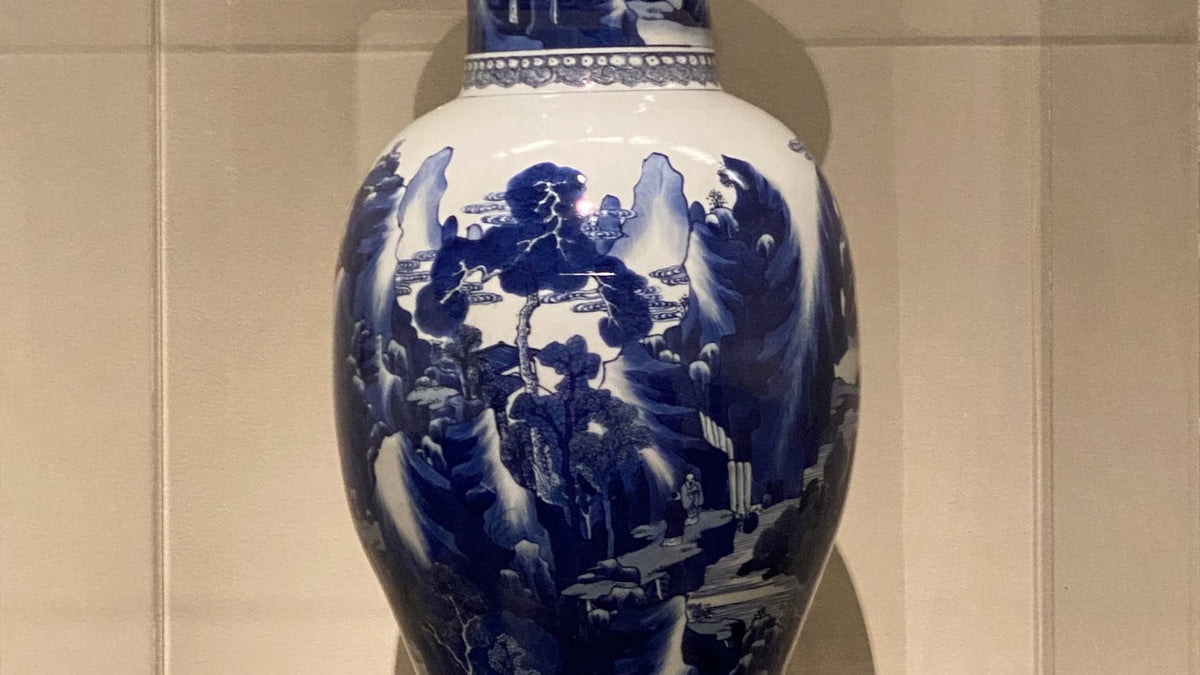

Opening image: detail of a late 17th-century Kangxi-period landscape vase, The Metropolitan Museum of Art, object 14.40.424. Public domain.

First, separate two similar terms

The comparison with five tones of ink is sometimes confused with qinghua wucai. They are different. In Chinese ceramic terminology, qinghua wucai combines underglaze blue with colors applied over the glaze. The Kangxi effect discussed here stays within blue-and-white: cobalt beneath a clear glaze, with the white body supplying the lightest areas.

Nor should the number five be treated as a recipe. A Palace Museum object record describes Kangxi blue-and-white washes divided into five, seven or nine tonal grades. The point is the painter's control of relative depth, not a fixed set of swatches.

Line and wash do different work

On a landscape vase, a dark line may hold the edge of a rock while a diluted wash turns its face. Tree trunks, rooflines and robe folds can be stated firmly; distant slopes fade until they are only slightly bluer than the porcelain around them. The eye reads the contrast before it counts the tones.

This is closely related to fen shui, the use of diluted cobalt washes within or beside drawn outlines. A filled passage need not be uniform. More pigment can settle toward one edge, or a wash can thin as it approaches open porcelain. After glazing and firing, those decisions appear as dark blue, middle blue, pale blue and reserve.

The Met's late seventeenth-century landscape vase makes the structure easy to see. Dense cobalt fixes the nearer rocks and trees. Paler mountains recede behind them. White paths and water are not gaps left after the painting; they keep the scene legible as it turns around the body.

How to look for tonal control

1. Find the deepest blue. It should give weight to particular contours or masses, not cover every important form equally.
2. Follow the middle tones. Look for washes that turn rock faces, separate foliage or move a figure away from the background.
3. Check the pale distance. Far hills, cloud or water may use very little cobalt. If every plane is equally dark, depth collapses.
4. Notice the white reserve. Unpainted porcelain can describe mist, water, sky or a break between forms.
5. Walk around the vessel. On a vase or brush pot, the composition must survive the curve. A convincing scene continues; it does not simply stop at the edge of a flat panel.

A mechanically graded palette can include several blues and still feel stiff. Tonal difference becomes useful only when it clarifies foreground and distance, outline and fill, mass and open space.

Applying the same eye to contemporary porcelain

On the Qilin and Waves Meiping, the qilin's mane and scales are held by repeated dark lines. The waves below alternate between filled blue curls and narrow white channels. Around the animal, open porcelain separates the flames and cloud forms. The painting is denser and more graphic than the Kangxi landscape above, but the same questions remain useful: where is the darkest blue, what has been washed, and where has white been allowed to work?

Those questions are more reliable than asking whether a modern piece has "five exact Kangxi blues." They also make comparisons across the Blue-and-White collection more concrete. For the broader process, read how cobalt, glaze and kiln fire produce blue-and-white porcelain.

Return to the historical vase and start at the dark tree in the foreground. Follow the cobalt as it thins across the rock, breaks at the water and reappears in the pale ridge behind it. The depth lies in those changes, not in the number five.

Sources: Palace Museum, Kangxi blue-and-white Guanyin vase with pine, bamboo, plum and inscription, overview of Kangxi blue-and-white porcelain, and wucai butterfly vase; The Metropolitan Museum of Art, Vase with landscape scenes, late 17th century. Accessed 18 August 2026.
